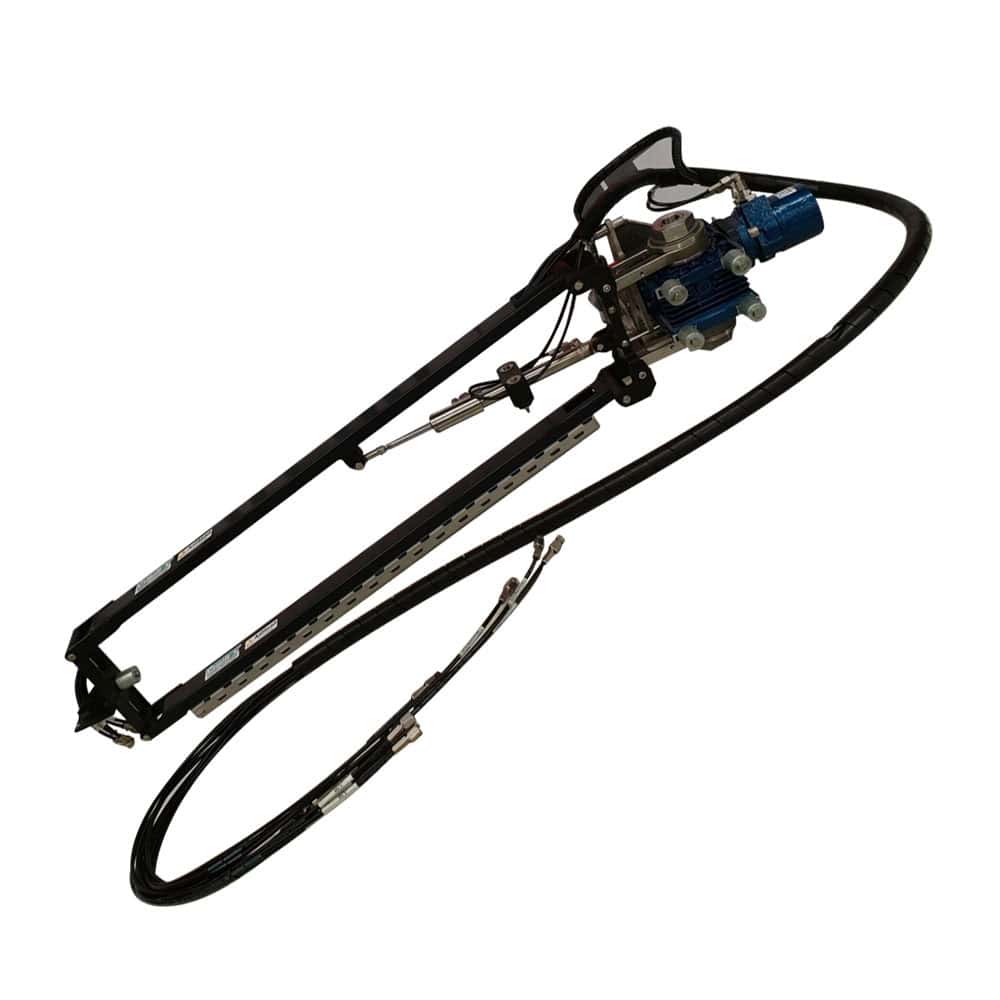

Survey Boom Arm

Maximize diver bottom time.

The vortex 180-FR (Full Reset) survey boom arms are designed to avoid the shoulder function damage typically seen with survey boom arms that are ridged in design.

The 180-FR achieves this through a ceramic friction clutch design using a friction material that does not swell in water or at depth. The ceramic clutch allows ‘slippage’ of the arms around a central rotational fulcrum when the arms hit a rock on the seabed for example. In the event slippage occurs, simply rotate the arms back into position and continue operations. No down time.

Download Manual
survey-boom-arm

Dredging in action

We offer a wide range of dredging solutions to suit most deep sea applications. The below graph shows our current selection of dredge solutions from the Electric 2 1/2 inch, to the larger BLACK HOLE 8 inch dredge.


We can also tailor a dredge solution to specifically suit your hydraulic supply if by chance your requirements are not covered by our extensive range. If you require a custom dredging solution please contact us directly.
dredging-in-action
t-100-tornado-4inch
Tornado 4" Dredge MkII
With a proven suction inlet vacuum up to 29.5in/hg (100kpa), the patented Vortex 4" T-100 Tornado Dredge is designed for subsea excavation and disposal of seabed materials up to 99mm in size.
Read more
vortex-4inch-tornado-dredge-pump
Vortex 4" Dredge Pump
The most powerful 4" ROV and diver dredge in the world at 97kpa (28in/hg) vacuum has removal rate performance more commonly seen in 6-inch dredges.
Read more
vortex-hurricane-6inch
Hurricane 6" Dredge
With a suction inlet vacuum up to 15.3in/hg (52kpa), the patented Vortex 6" Hurricane Dredge is designed for subsea excavation and disposal of seabed materials up to 149mm in size.
Read more

Why is Vortex Dredge Superior to other ROV Units?

Vortex dredges have been designed to combine high suction values and high water volumes to tear up sticky soils with very high suction then keep it flowing with high water volume. Powerful, simple, effective.

Example: Getting a "RIDICULOUSLY THICK MILKSHAKE" ® ™ to move through a straw is similar to dredging a very sticky seabed and suction is key because if you drive a suction hose deep into sticky mud the water flow in the suction hose will often stall and the hose is essentially filled with a 'plug' of mud and only high suction will clear the hose. Once the hose is clear then water flow takes over.
Suction does the work and water flow continues the work done.

VORTEX performance figures DO NOT have a small print clause with an Asterix symbol next to figures which would represent "best case Scenario" removal rates as opposed to actual removal rates.

VORTEX removal rates are ACTUAL removal rates as seen with actual material moved using Magnetite black iron sand and rocks weighing 2.375kg per liter as to the sample product.
